CAD Parts

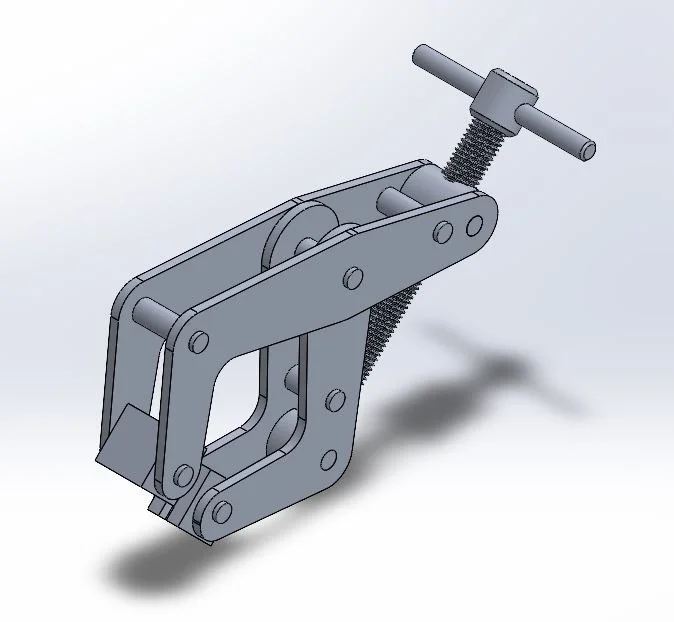

Final Assembly.JPG

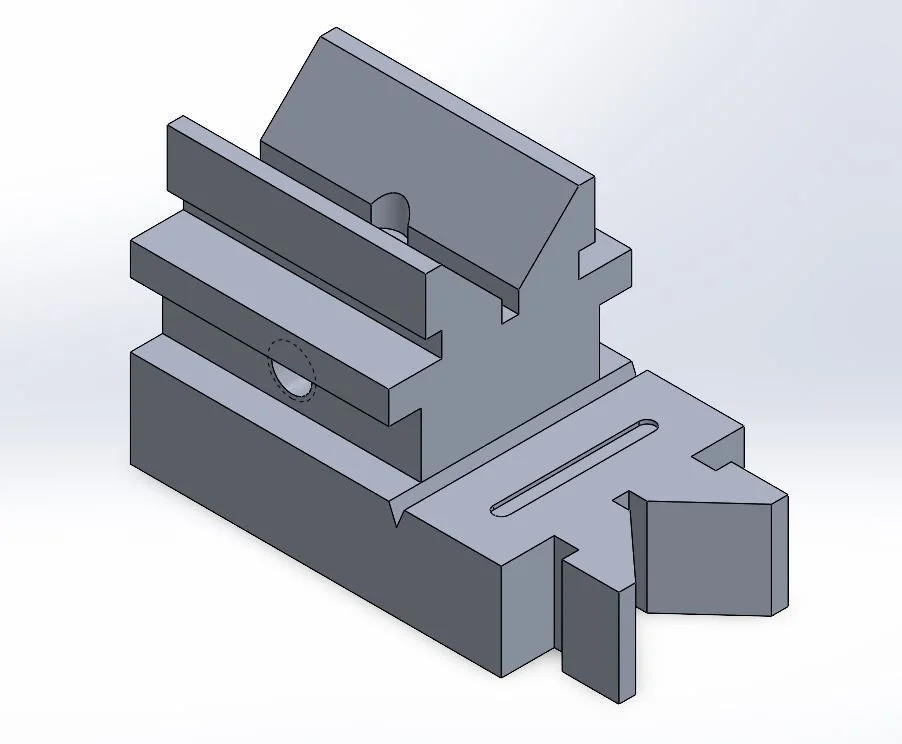

HW5 Base Part.JPG

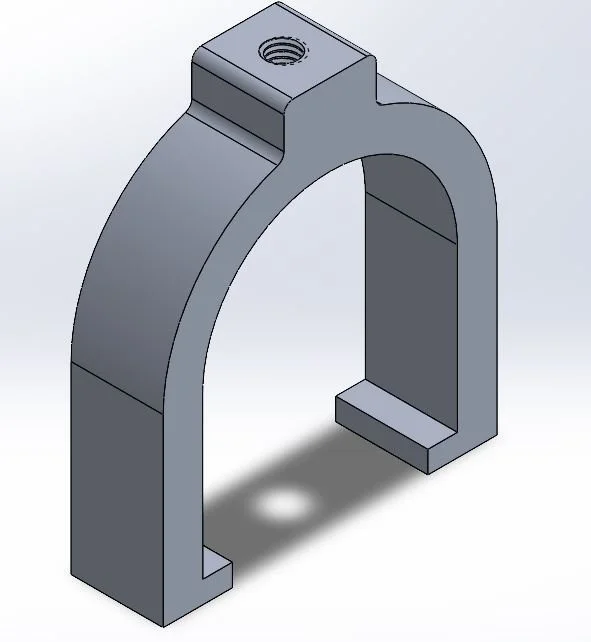

HW5 Hinge Part.JPG

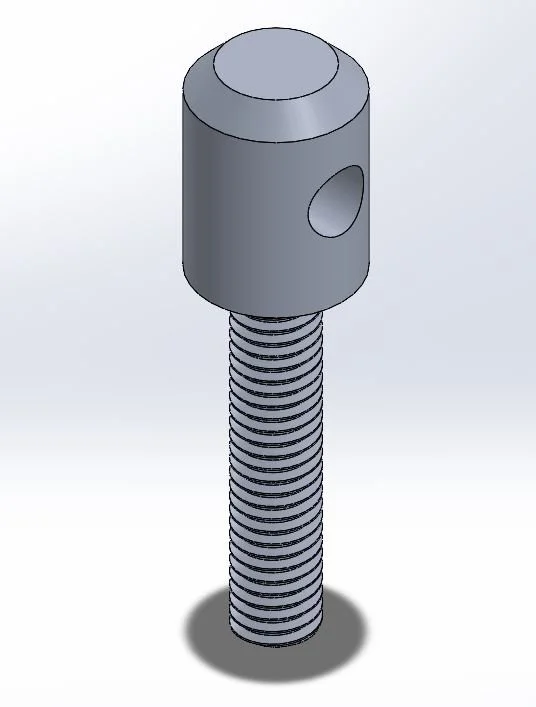

HW5 Screw Part.JPG

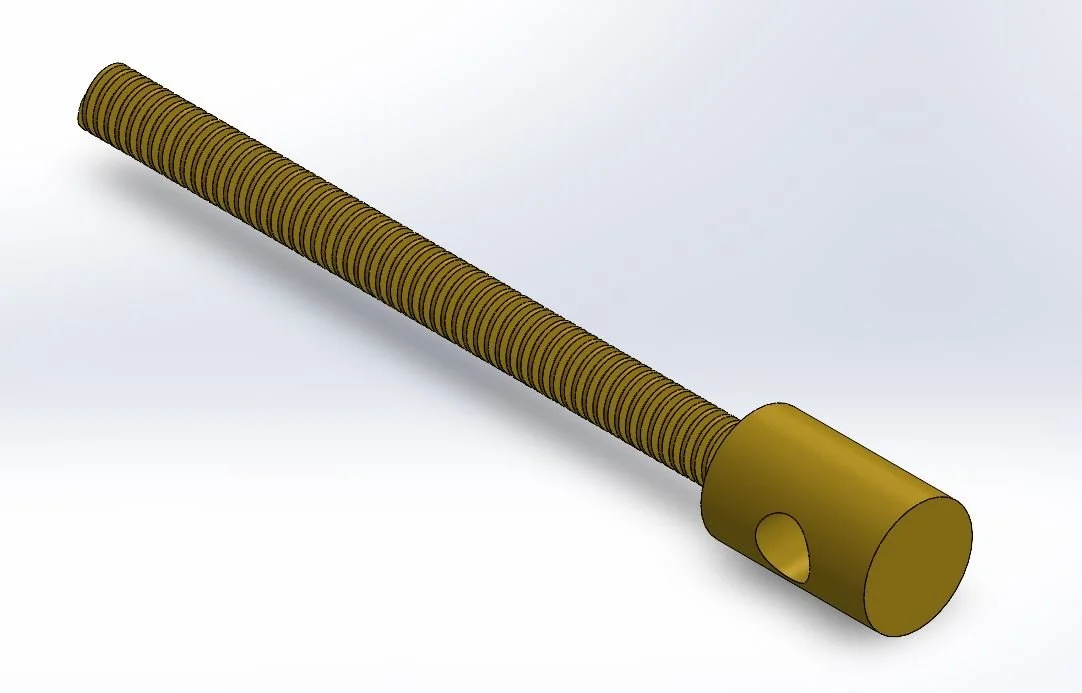

HW6 Part.JPG

Drawings, GD&T

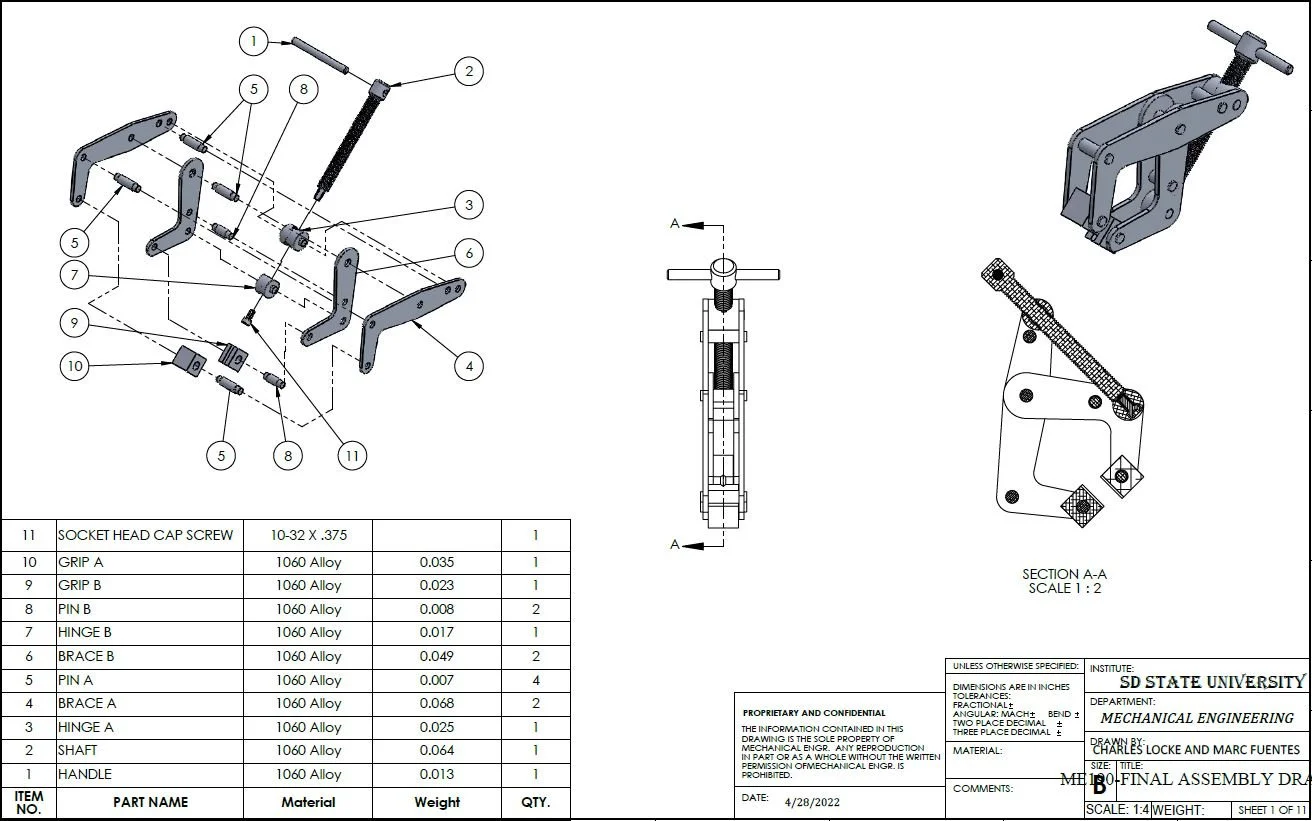

Final Assembly Drawing.JPG

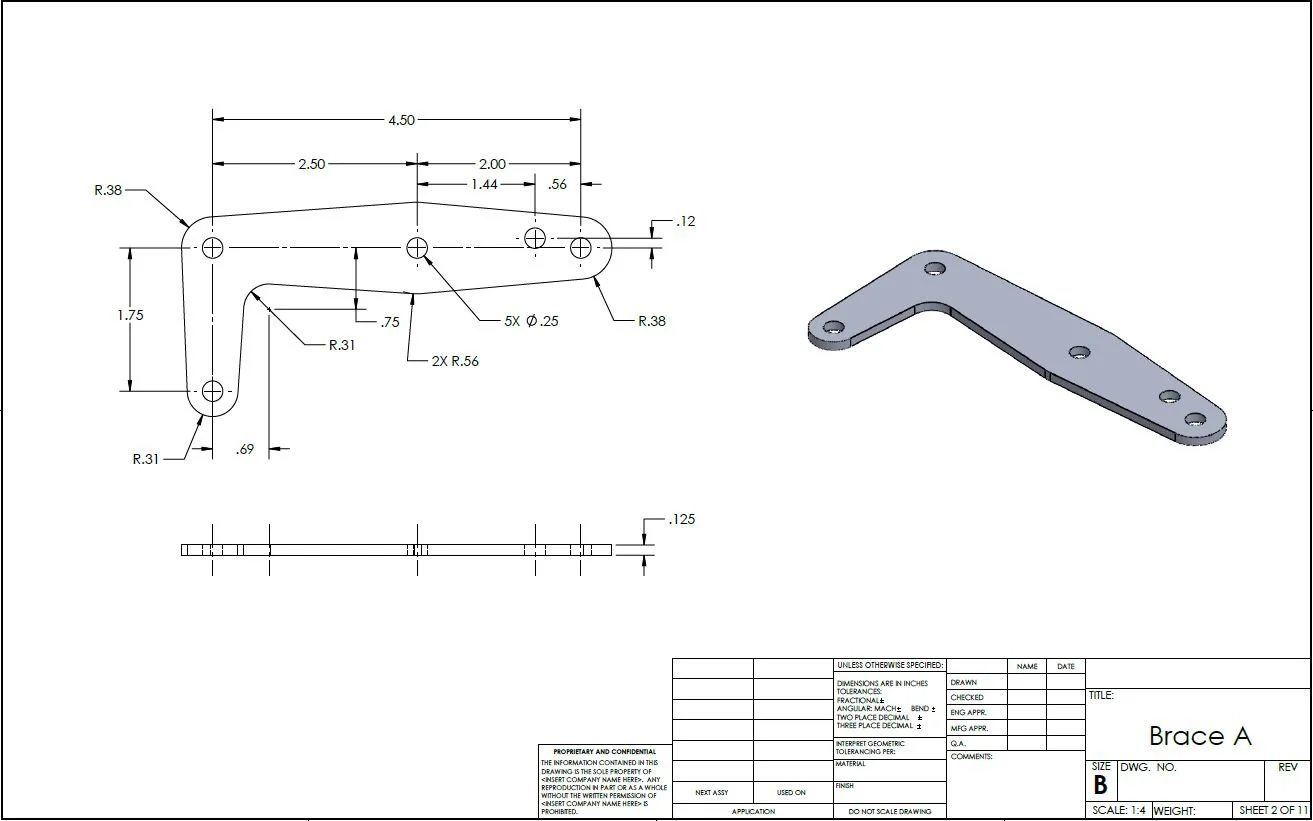

Brace A Drawing.JPG

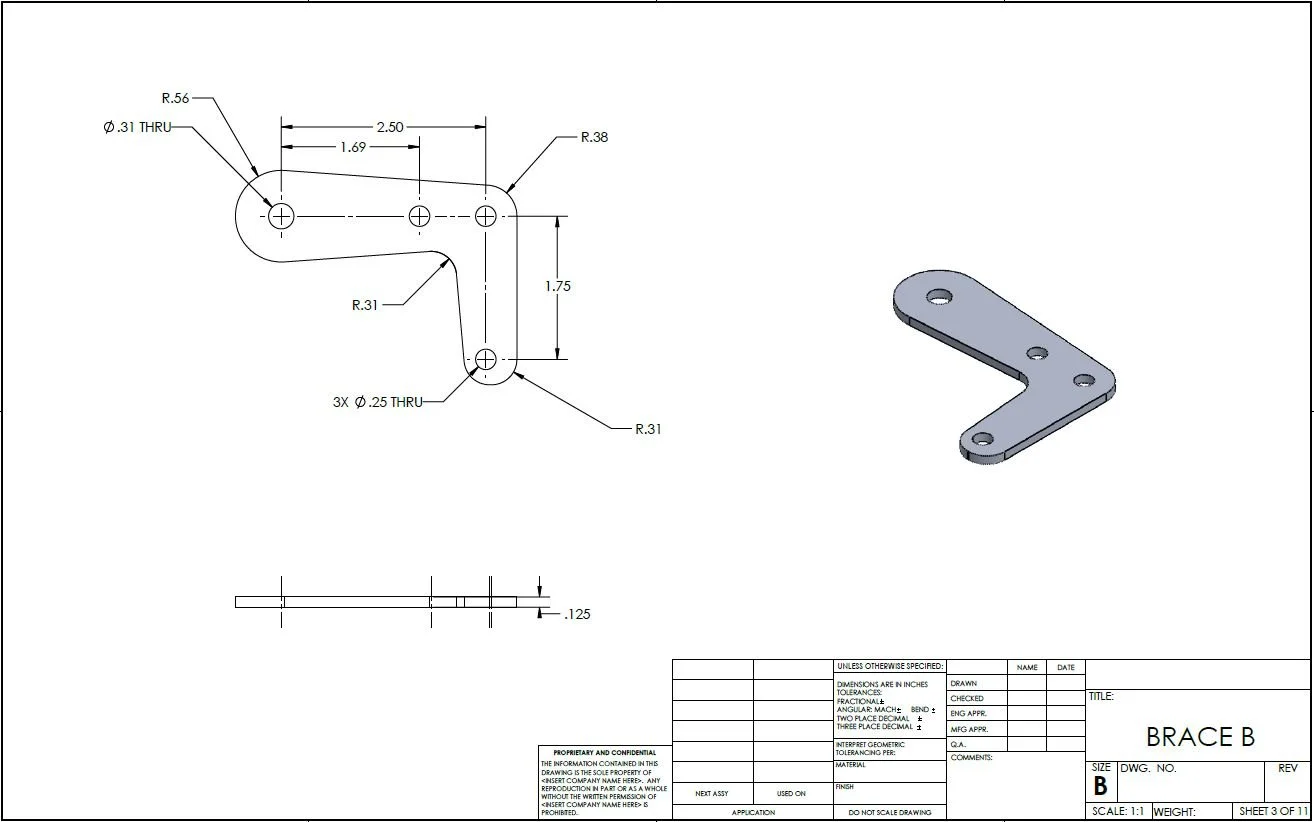

Brace B Drawing.JPG

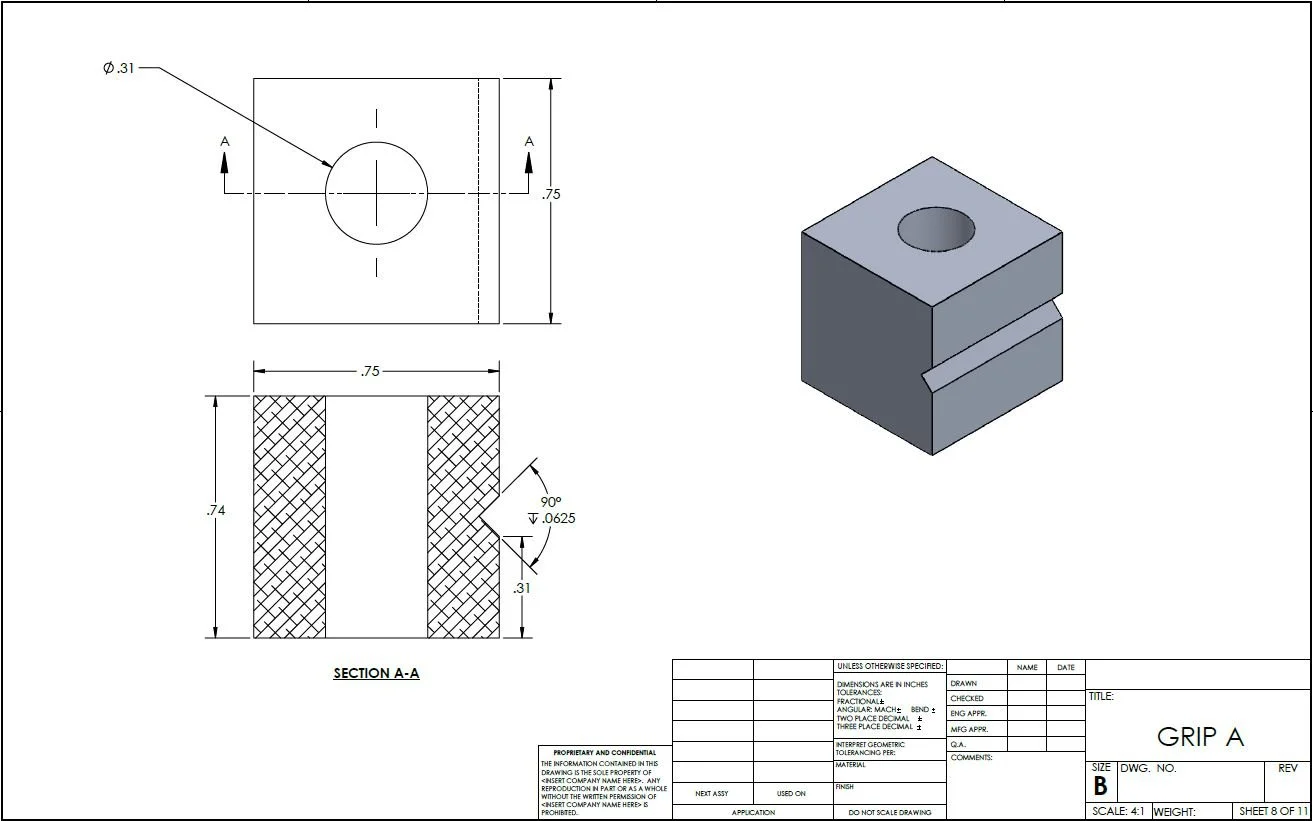

Grip A Drawing.JPG

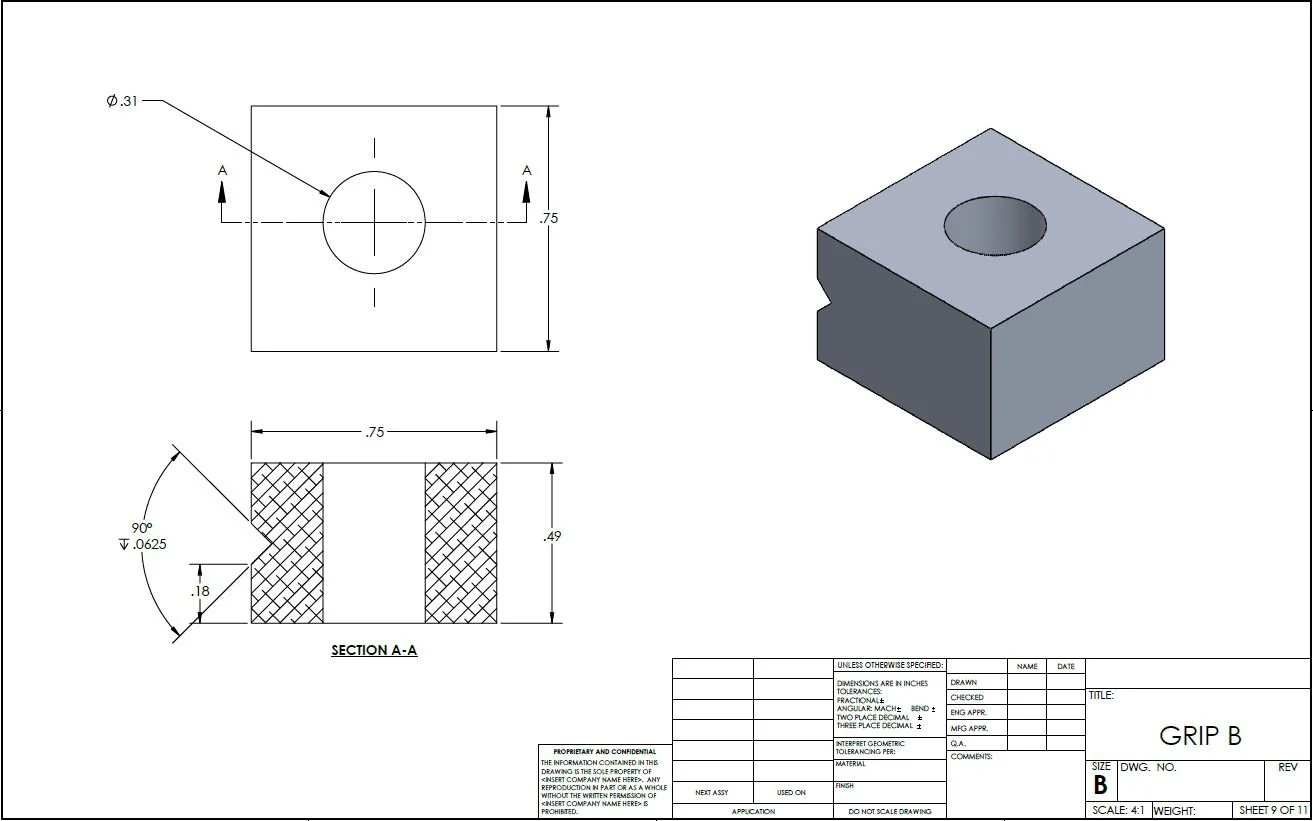

Grip B Drawing.JPG

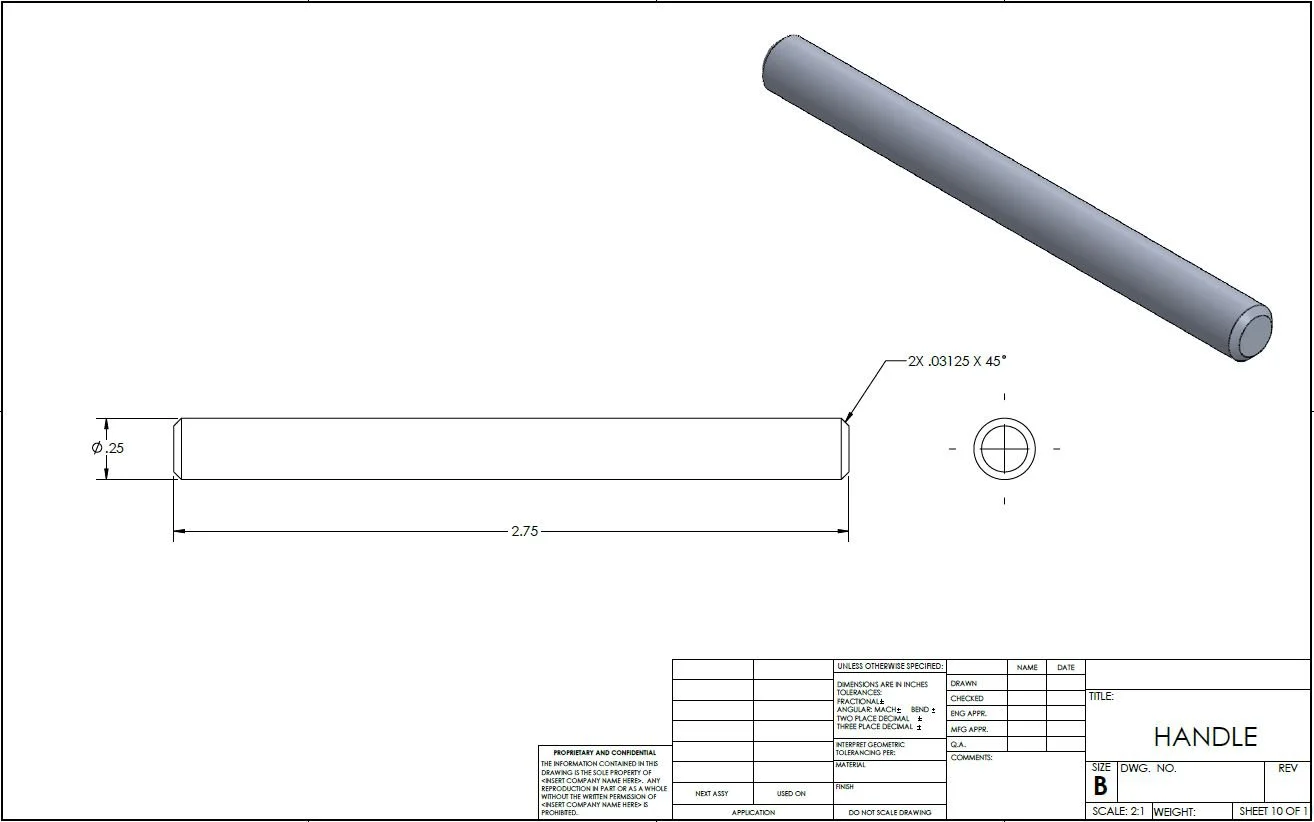

Handle Drawing.JPG

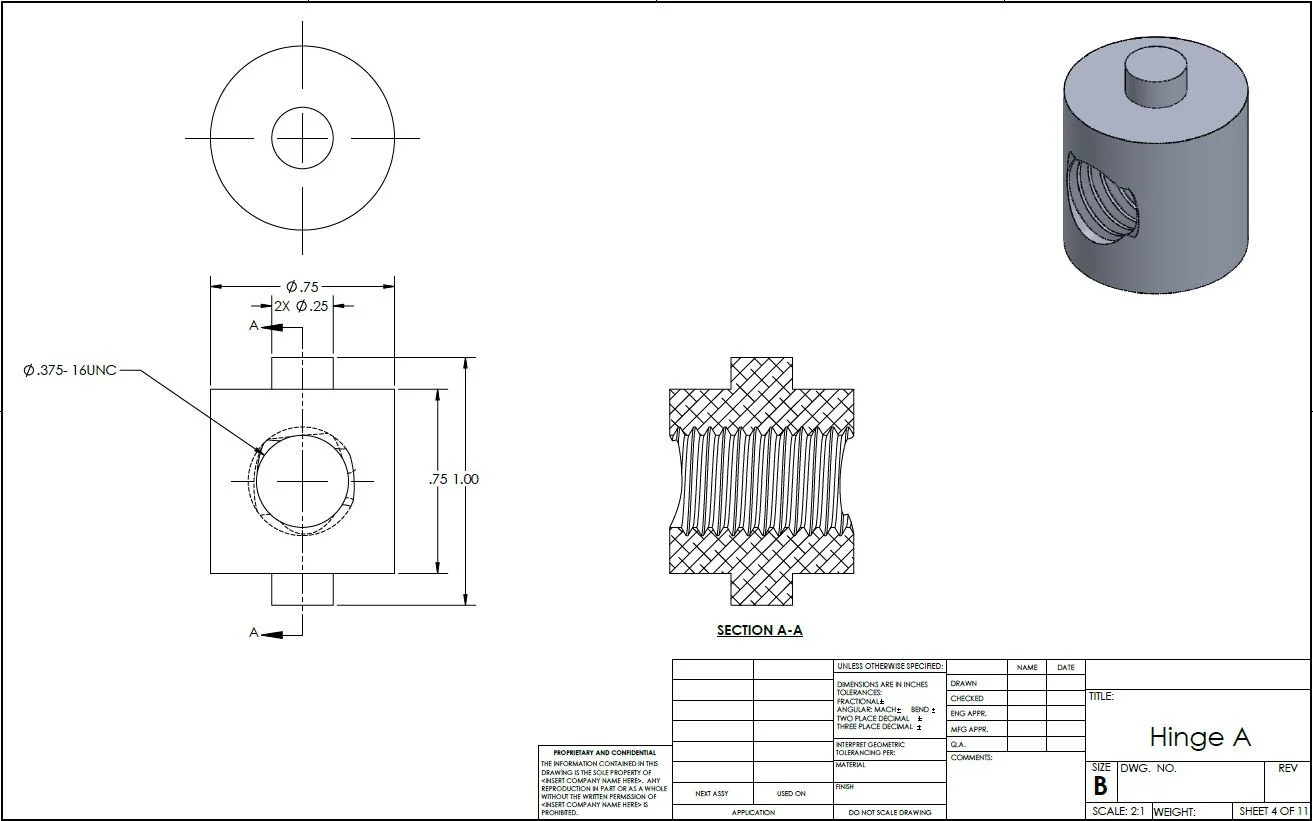

Hinge A Drawing.JPG

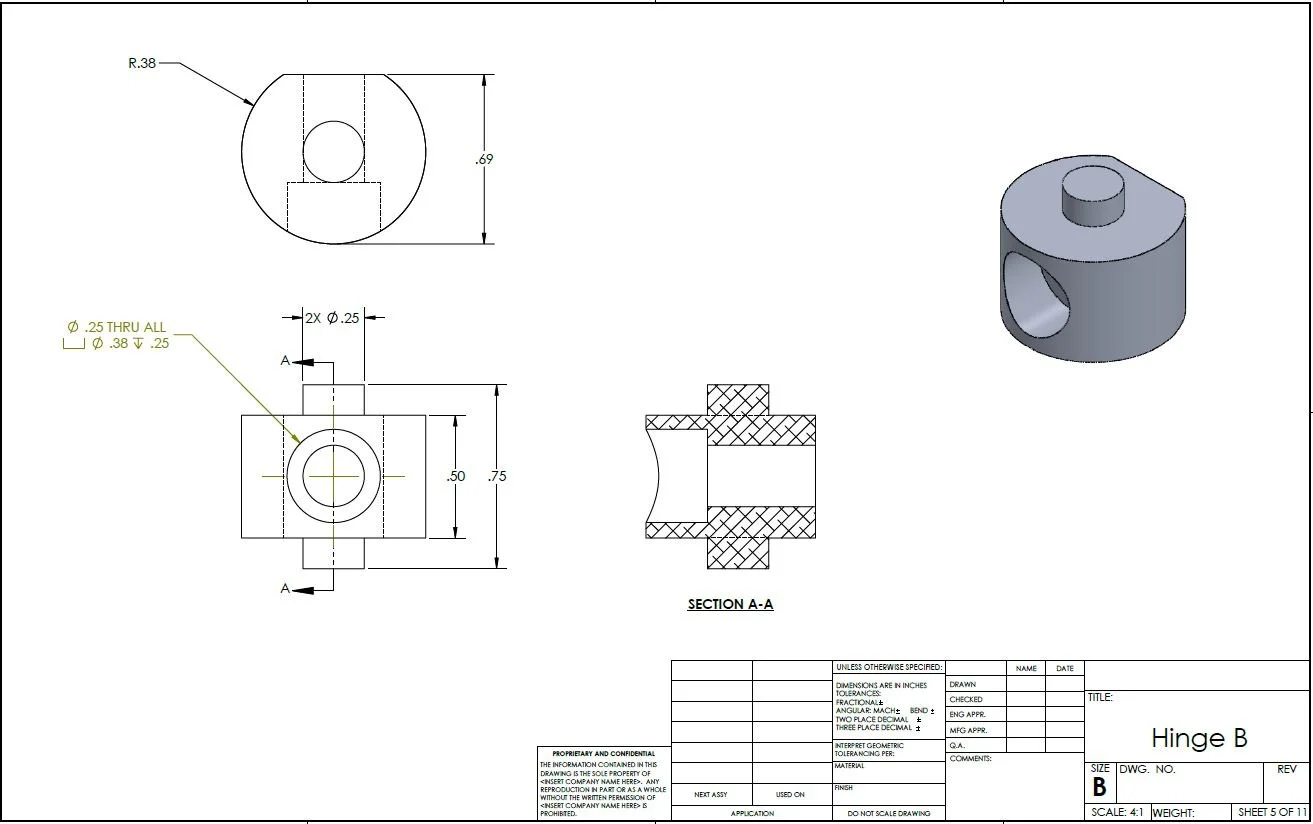

Hinge B Drawing.JPG

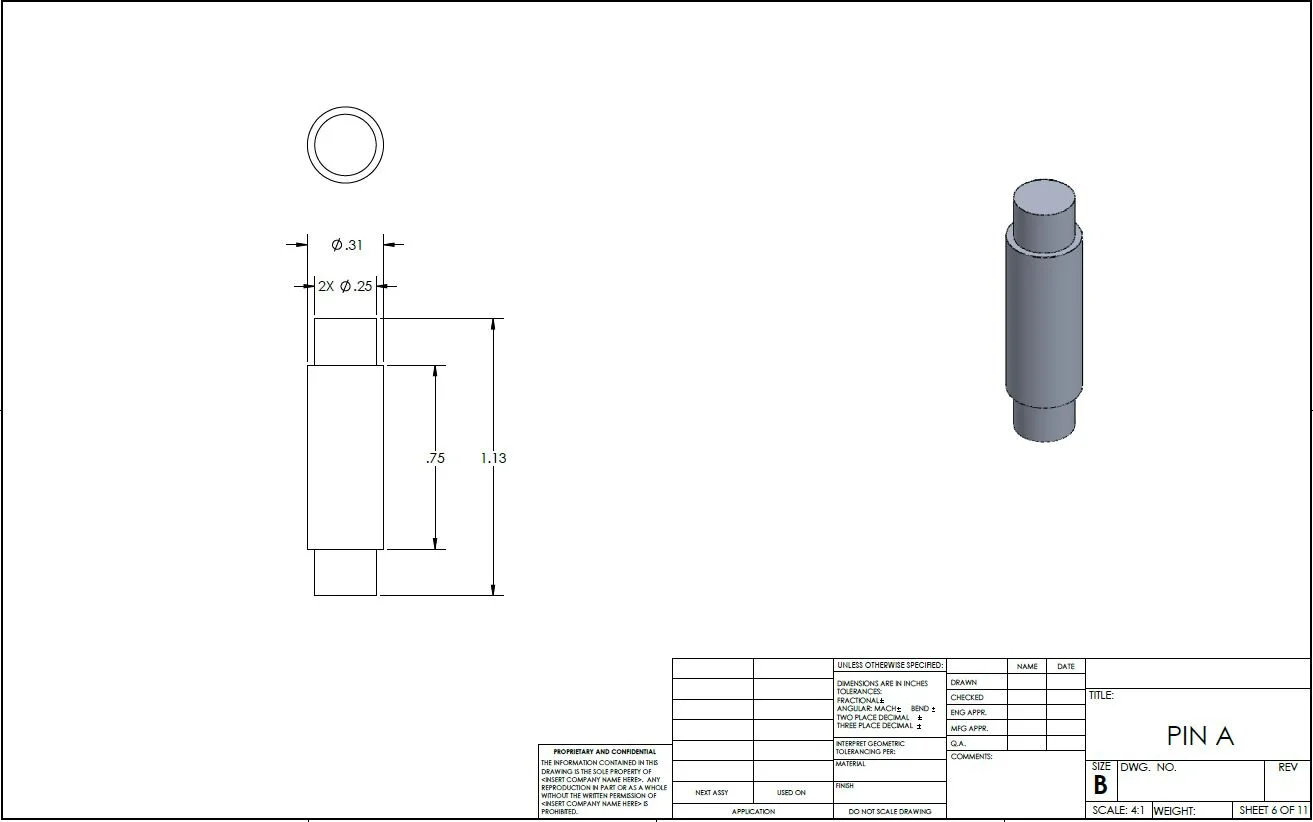

Pin A Drawing.JPG

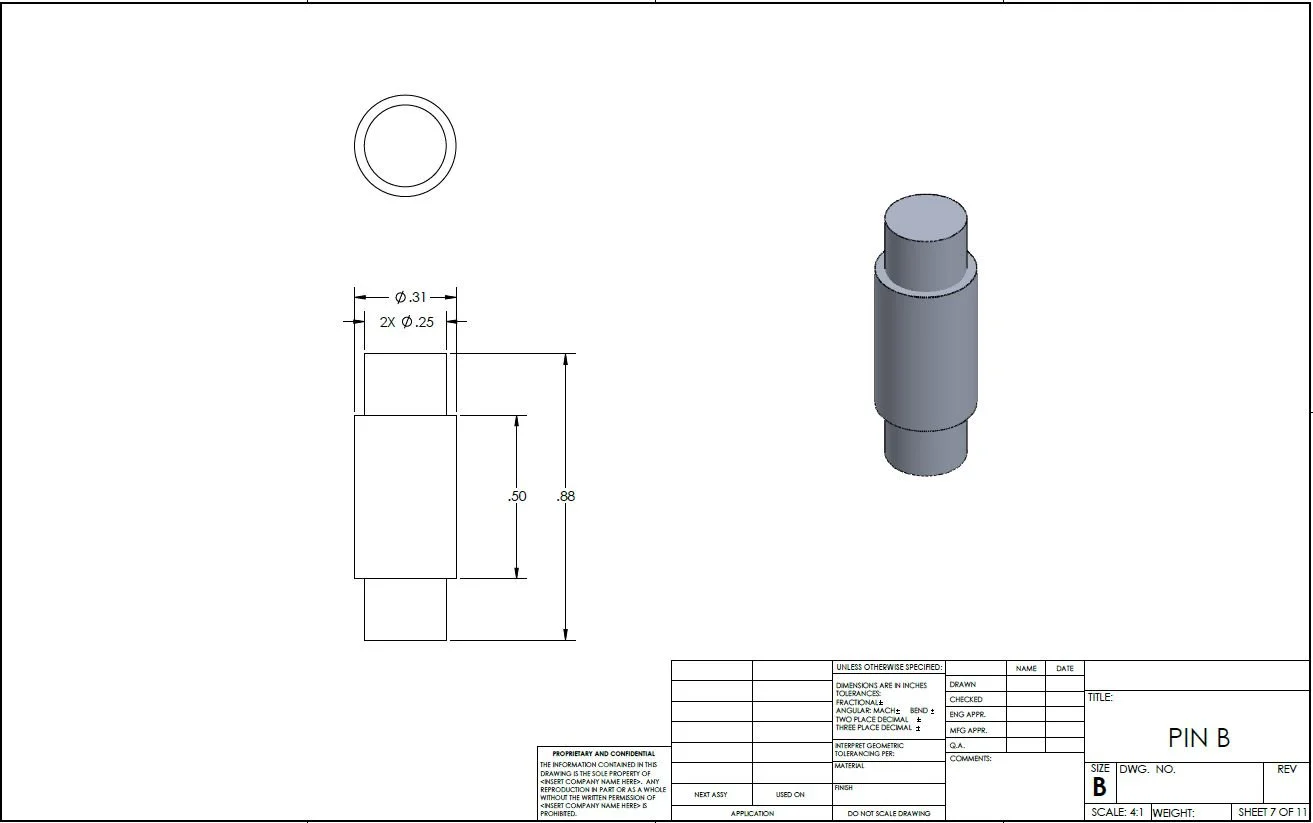

Pin B Drawing.JPG

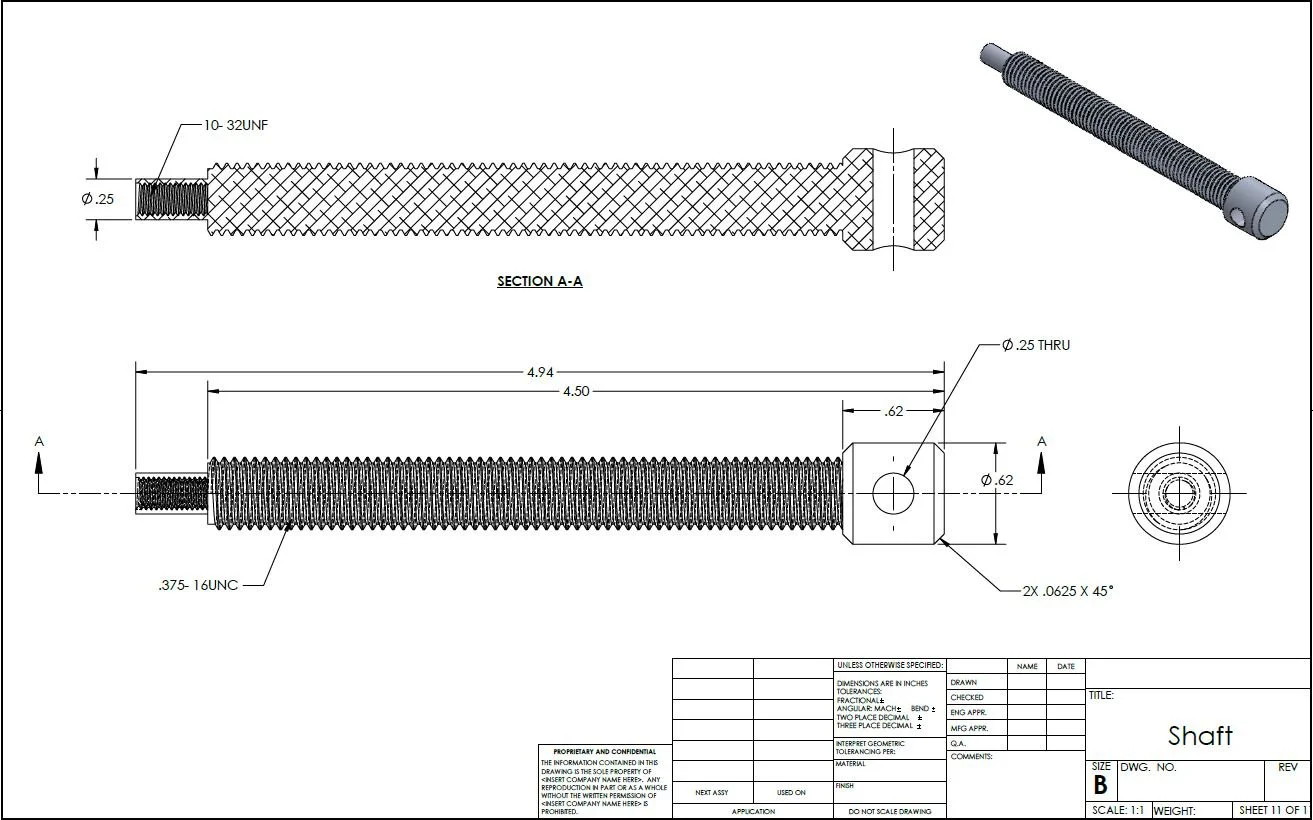

Shaft Drawing.JPG

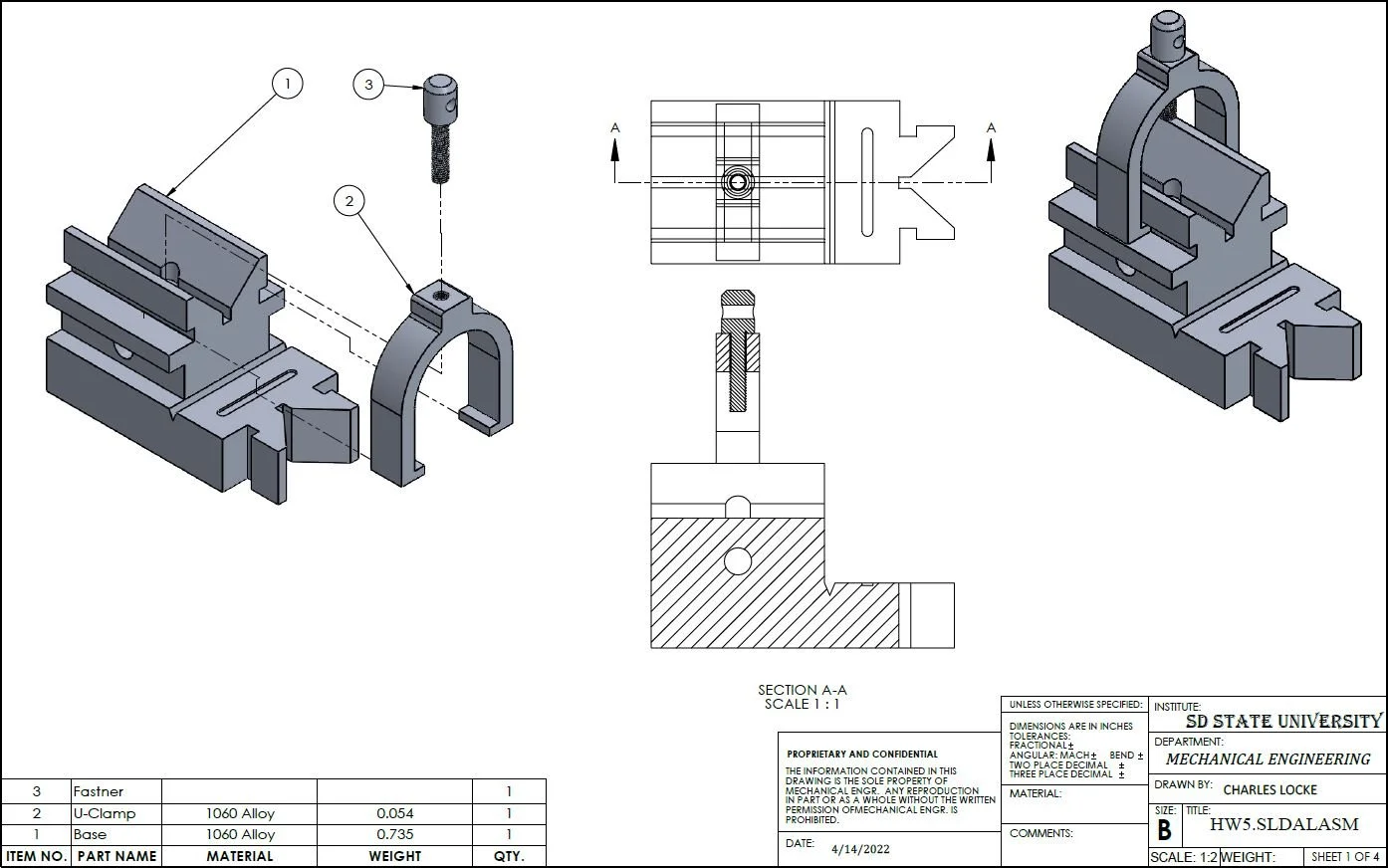

HW5 Assembly Drawing.JPG

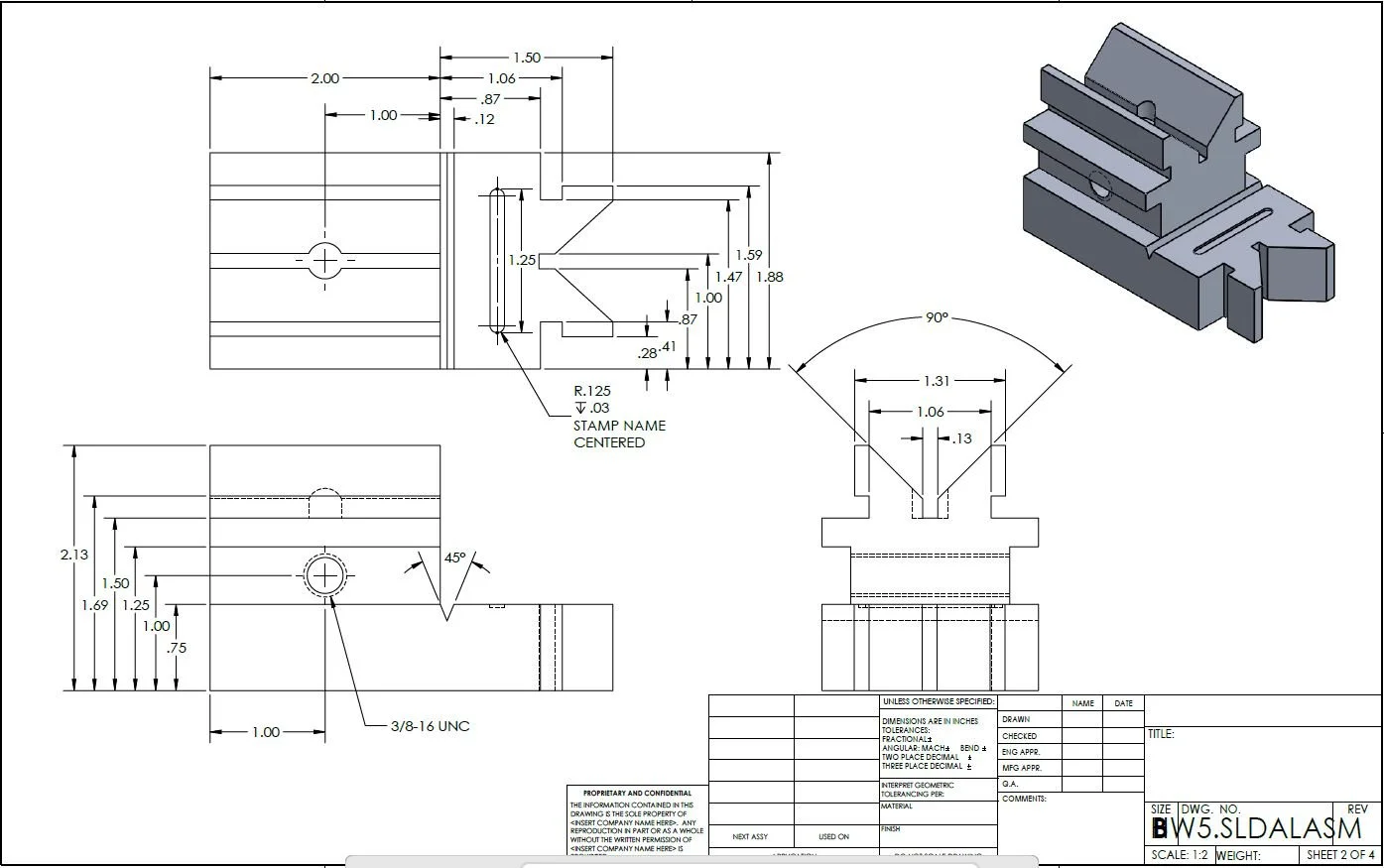

HW5 Part 1 Drawing.JPG

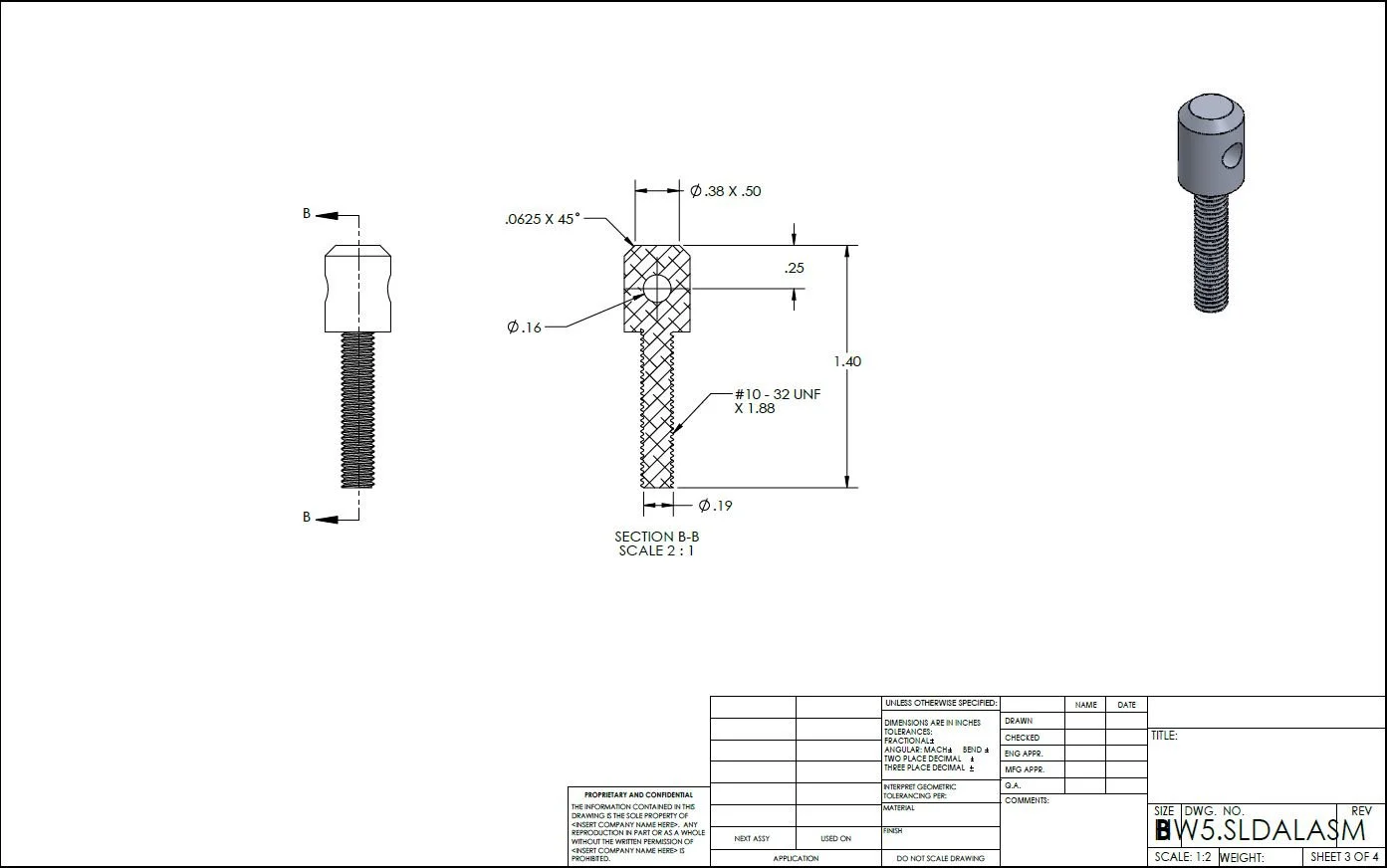

HW5 Part 2 Drawing.JPG

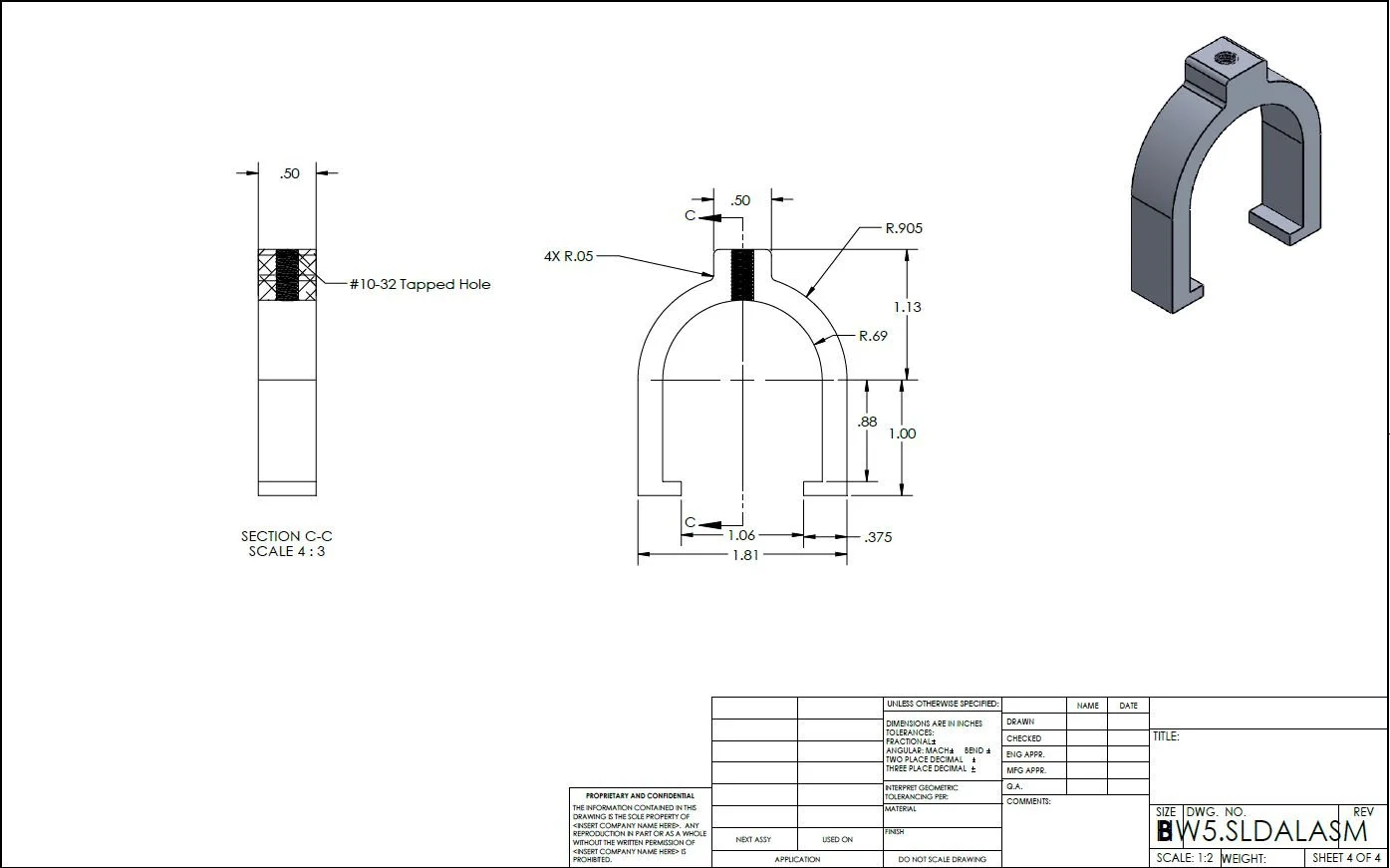

HW5 Part 3 Drawing.JPG

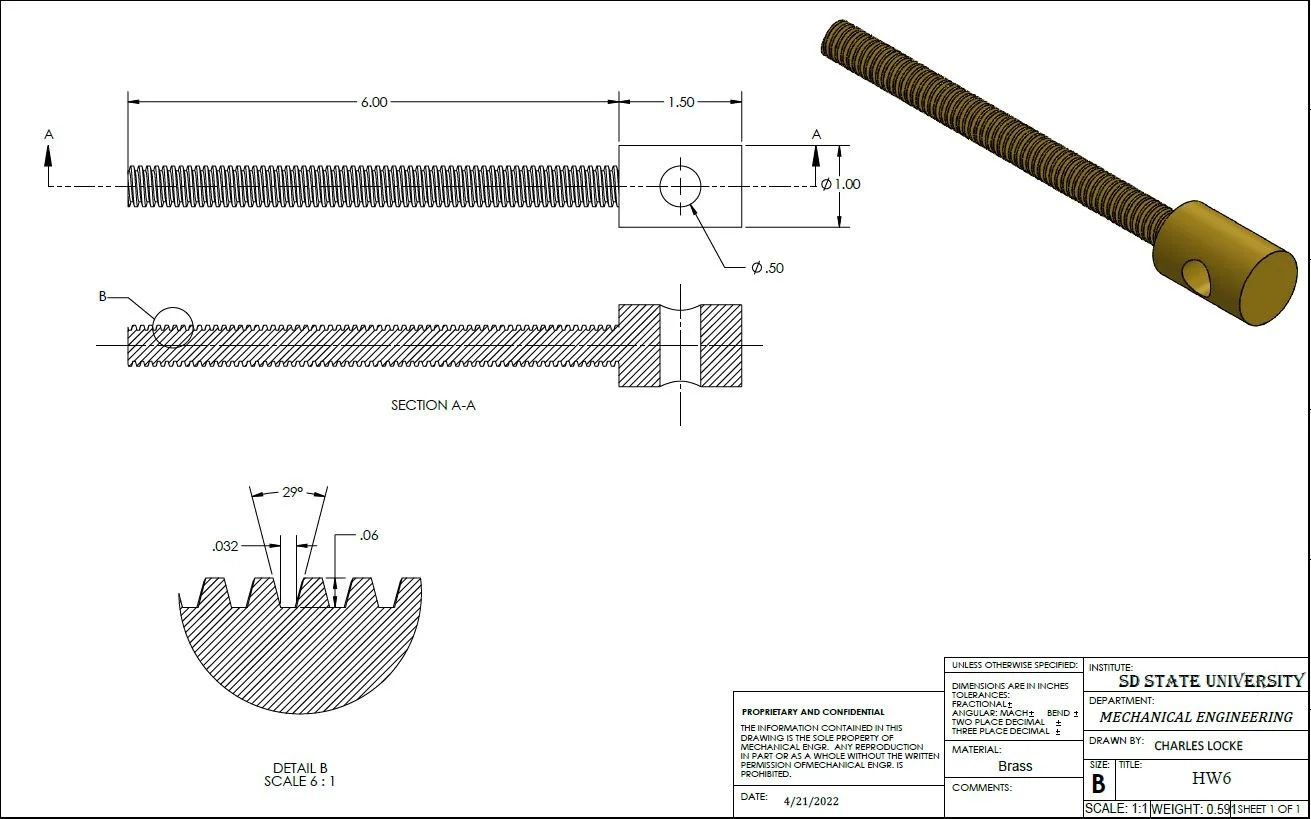

HW6 Drawing.JPG
